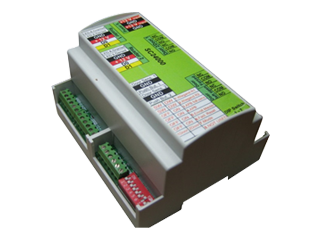

CONTROLLERS SOFTWARE
- Programmable through readers.
- 2 readers, 2 door relays, 2 door sensors, 2 push buttons
- Relay output 1 (door forced alarm)
- Relay output 2 (door open too long alarm)
- Adjustable Door relay time (1 - 250sec, 0 - ON/OFF(toggle) mode)
- Normal wiegand mode (only card) and LCSP mode (card and PIN code) on any reader
- Auto detect Wiegand26 / Wiegand34
- Shadow delete card - per user or per group of users
- Single door mode / 2 readers (one reader on each side of the door)
- 2 door mode / 2 readers (one reader on each door)
- 1 minute lockout after 15 invalid cards

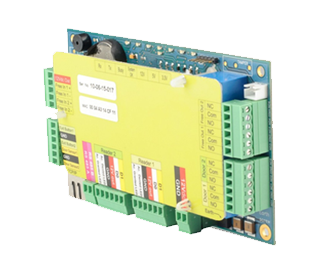

NETWORK CONTROLLER
- 2 doors networkable access control unit.
- Distributed intelligence. EWS units will function even if the communication is not present.
- Failure of one EWS unit will not influence the other Units.
- One RS485 communication bus per system.
- Fingerprint readers management from PROS via the RS485 bus.
- Configurable Free inputs, Free Outputs, Door Sensors.
- Anti-pass back, Timed Anti-pass back, Mantrap.
- AClient-Server Software, multiple users can access the database on the server PC
- Fire Alarm, automatic printing of evacuation report
